鼓式
序號(hào) | 型 號(hào) | 編 號(hào) | 制 動(dòng) 形 式 | 行 程 | |||
NO. | MODEL | ORIGINAL NO | BRAKING METHOD | STROKE | |||
47 | 24/24 | 雙皮膜 Double Diaphragm |
64 | ||||
48 | 24/30-A | 64 | |||||
49 | 30/30-A | 64 | |||||

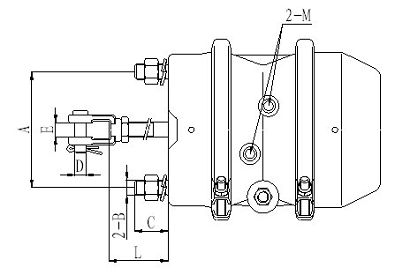

NO. | L | A | B | C | D | E | M |
47 | 270 | 120.7 | 2-5/8-11" | 38 | φ12.5 | 14.5 | 2-3/8"NPT |
48 | 277 | 120.7 | 2-5/8-11" | 38 | φ12.5 | 14.5 | 2-3/8"NPT |
49 | 300 | 120.7 | 2-5/8-11" | 38 | φ12.5 | 14.5 | 2-3/8"NPT |
